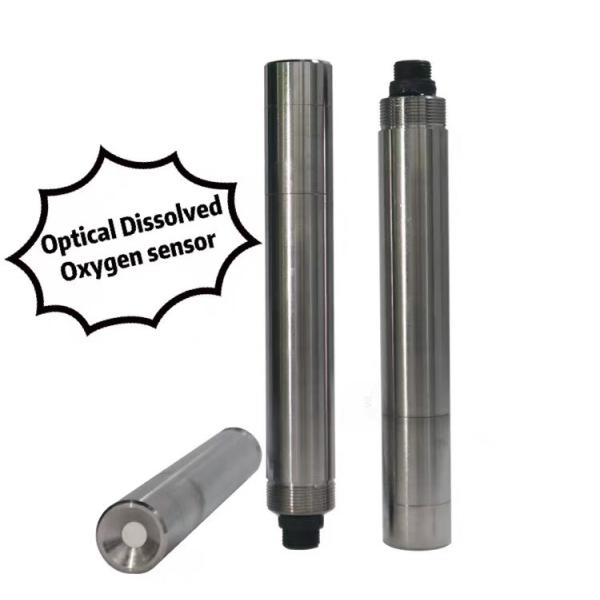

50mA IP68 Submersible Dissolved Oxygen Sensor Measuring Device

Name: 50mA IP68 Submersible Dissolved Oxygen Sensor Measuring Device
Brand: Desun Uniwill
Price: 280.00 USD

China 50mA IP68 Submersible Dissolved Oxygen Sensor Measuring Device wholesale

Brand Name : Desun Uniwill

Model Number : DS-380

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : $280.00 - $400.00/ Piece

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000 sets per month

Delivery Time : 7~ 15 working days

Packaging Details : Carton packaging

Model : DS380

Principle : Fluorescence analysis method

Measuring range : 0~20mg/L

Response time : 1-10 seconds

Accuracy : 1%

Protection level : IP68

Installation : Submersible

Temperature sensor : 0~50°C

Temperature accuracy : ±0.2°C

Output : Support RS-485, MODBUS protocol

Power supply : DC 6~12V, current <50mA

Size : Φ26*155 mm

Probe cable length : Default 5 m

Fluorescent cap life : 1 year

Maximum working pressure : 3bar

Housing material : SS316/Titanium alloy

Contact Now

Cost of Dissolved Oxygen Sensors from Manufacturer Dissolved Oxygen Measurement and Measuring Device

What is an online dissolved oxygen sensor?
Online dissolved oxygen sensor is an analytical instrument for continuous monitoring and control of dissolved oxygen, providing real-time measurement results for various industrial processes. Online dissolved oxygen sensor is very suitable for online monitoring and control of dissolved oxygen in pharmaceutical, brewing, chemical production and pure water monitoring.
Dissolved Oxygen Measurement and Measuring Device Brief introduction

The DS380 series of fluorescent dissolved oxygen sensors uses a new type of fluorescence lifetime technology and high performance fluorescent materials. The fluorescent dissolved oxygen sensor is based on the quenching principle of the specific fluorescence of the specific substance in physics. Blue light from a light-emitting diode (LED) illuminates the fluorescent material on the inner surface of the fluorescent cap, and the fluorescent material on the inner surface is excited to emit red light by detecting the phase difference between red and blue light and the internal calibration value. The ratio is calculated to calculate the concentration of oxygen molecules, and the final value is automatically compensated by temperature and pressure.

Features of Dissolved Oxygen Measurement and Measuring Device:

-0-20mg/L or 0-200% saturation
-0~50 °C; IP68 protection level
-No film, no electrolyte, no polarization
-No need to consume oxygen, no flow rate
-Built-in temperature sensor, automatic temperature compensation
-Free from chemical interferences such as sulfides
-Small annual drift, fast response, and more accurate measurement
-Free of maintenance, longer application cycle and lower cost of use
-Fluor cap replacement is simple
-Support RS-485, MODBUS protocol

Technical Specifications of Dissolved Oxygen Measurement and Measuring Device:

Item	Parameters
Model	DS380
Principle	Fluorescence analysis method
Measuring range	0~20mg/L or 0-200% saturation
Response time	3 sec
Accuracy	1%
Protection level	IP68
Installation	Submersible
Temperature sensor	NTC
Temperature range	0~50°C
Temperature accuracy	±0.2°C
Output	Support RS-485, MODBUS protocol
Power supply	DC 6~12V, current <50mA
Size	Φ26*155 mm
Probe cable length	Default 5 m, customized 10m, 15 m and 30 m cable
Fluorescent cap life	1 year
Maximum working pressure	3bar
Housing material	SS316/Titanium alloy

Dissolved Oxygen Measurement and Measuring Device Cases:

50mA IP68 Submersible Dissolved Oxygen Sensor Measuring Device
